 We have been continuously indulged in supplying a high quality array of GI Magnehelic Gauge Box to our highly valued consumers. Our products are highly acclaimed for their performance and quality. These are widely execute in numerous sectors. These products are gettable at leading market prices.

Other Information

• Pay Mode Terms: T/T (Bank Transfer)

 This SS-304, SS-202, stainless steel hinged box has a polished satin finish. This box has a hinged door with a face cutout to accept a Dwyer magnehelic pressure guage. Box comes complete with holes to accept pressure differential sensors. Box is fabricated with a flanged face for recess mounting.

Other Information

• Pay Mode Terms: T/T (Bank Transfer)

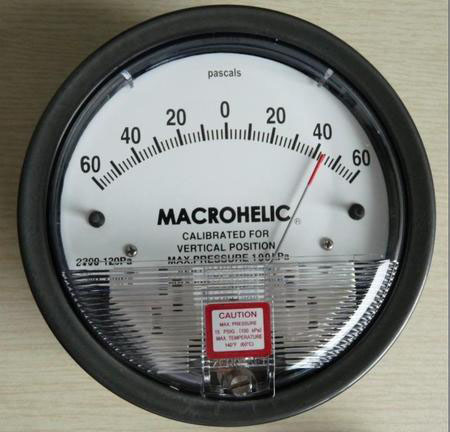

 We are the leading manufacturer and exporter of a quality tested assortment of Industrial Magnehelic Gauges. Our range is widely used in checking the automatic valves and gas-air ratio controls, further in medical equipments also to monitor blood and respiratory pressures. Besides it is used to measure the fan and blow pressures, liquid levels and pressures in fluidic systems. Operated by a diaphragm our product is low in cost and is available in different specifications ranging from

0-10,

0-25,

0-40,

0-50,

0-100 MM Wc , And

0- 60 pA,

0-250 pA.

Uses : Used for high accuracy-guaranteed within 2% of full scale and for the wide choice of 81 models available to suit your needs precisely.

Other Information

• Pay Mode Terms: T/T (Bank Transfer)

 Having vast experience in the relevant industry, we are engaged in providing a broad assortment of Magnehelic Gauge that is assemble in order to meet specific demands of customers. Moreover, a series of quality tests is performed on offered gauge to ensure a defect free delivery at clients end. Clients can avail the offered range from us at market leading prices within stipulated time frame.

Features:

• Accuracy

• High functionality

• Long service life

Specifications:

• We provide magnehelic gauge of series which is low in cost, diaphragm operated and differential pressure gauge

• Owing to these features these are used in applications for measuring positive, negative, or differential pressure with an accuracy of 2%

• Besides, these are also applied for monitoring filter status, duct static pressure, room pressure, fan or blower pressure, paint booths, dust collectors, cabinet purging and many others

• We offer magnehelic differential pressure gauges which run on air and non-combustible compatible gases and are offered with the option of natural gas

• In addition to this, these housing are fabricated by using die cast aluminum case and bezel, with acrylic cover

• These have exterior finish with grey color to withstand 168 hour salt spray corrosion test

Specifications:

• Accuracy: ±2% of full scale (±3% on - 0, -100 Pa, -125 Pa, 10MM and ±4% on - 00, -60 Pa, -6MM ranges), throughout range at 70°F (21.1°C)

• Pressure Limits: -20 Hg. to 15 psig.† (-0.677 bar to 1.034 bar); MP option

• HP option: 35 psig (2.41 bar), 80 psig (5.52 bar)

• Overpressure: Relief plug opens at approximately 25 psig (1.72 bar), standard gages only

• Temperature Limits: 20 to 140°F.* (-6.67 to 60°C)

• Size: 4 (101.6 mm) Diameter dial face

• Mounting Orientation: Diaphragm in vertical position, Consult factory for

• Process Connections: 1/8 female NPT duplicate high and low pressure taps one pair side and one pair back

• Weight: 1 lb 2 oz (510 g), MP & HP 2 lb 2 oz (963 g)

• Other position orientations

Applications:

• Filter Status

• Duct Static Pressure

• Clean Room Pressure

• Building Pressure

• Fan and Blower Pressure

• Paint Booths

• Dust Collectors

• Glove Box Pressure

• Bubbler Systems

• Cabinet Purging

Other Information

• Pay Mode Terms: T/T (Bank Transfer)

 We offer magnehelic differential pressure gauges which run on air and non-combustible compatible gases and are offered with the option of natural gas. In addition to this, these housing are fabricated by using die cast aluminum case and bezel, with acrylic cover. These have exterior finish with grey color to withstand 168 hour salt spray corrosion test.

Specifications :

• Accuracy: ±2% of full scale (±3% on - 0, -100 Pa, -125 Pa, 10MM and ±4% on - 00, -60 Pa, -6MM ranges), throughout range at 70°F (21.1°C).
• Pressure Limits: -20 Hg. to 15 psig.† (-0.677 bar to 1.034 bar); MP option:
• HP option: 35 psig (2.41 bar), 80 psig (5.52 bar).
• Overpressure: Relief plug opens at approximately 25 psig (1.72 bar), standard gages only.
• Temperature Limits: 20 to 140°F.* (-6.67 to 60°C).
• Size: 4 (101.6 mm) Diameter dial face.
• Mounting Orientation: Diaphragm in vertical position, Consult factory for
• Process Connections: 1/8 female NPT duplicate high and low pressure taps one pair side and one pair back.
• Weight: 1 lb 2 oz (510 g), MP & HP 2 lb 2 oz (963 g).
• Other position orientations.

Other Information

• Pay Mode Terms: T/T (Bank Transfer)

 We are one step ahead of our competitors in manufacturing and supplying a wide range of Low Cost Sensocon Differential Pressure Gauge. These premium quality products are manufactured using high-grade raw material, which is obtained from the most authentic and leading vendor in the market. Skilled professionals are hired to provide proper guidelines to our staff to manufacture high quality range of these products. The product is used for various purposes in different industries like filter Status, Duct Static, Pressure Clean Room Pressure, Building Pressure, Fan and Blower Pressure.

Specifications:

• Accuracy 2%
• Mounts in Industry
• Type : Arrow indicator
• Die Cast Aluminum Housing
• Standard Holes
• Temperature : 20 to 140 F

Other Information

• Pay Mode Terms: T/T (Bank Transfer)

 We are here to offer Magnehelic Gauge With S.S. Enclosure. It is designed to calibrate a broad spectrum of instruments from moving coil meters to process control systems and retain its precision over long periods in wide environmental conditions. These are customized as per as needs of clients.

Specifications:

Metal of construction S.S. 304

• Dial size: 4"
• Ranges: mm/wc,In/wc, Pascal
• Enclosure type: consul type & wall mounting
• Front panel: zero calibration gas selector switch optional

available in different specifications ranging from

0-10,

0-25,

0-40,

0-50,

0-100 MM Wc , And

0- 60 pA,

0-250 pA.

Uses : Used for high accuracy-guaranteed within 2% of full scale and for the wide choice of 81 models available to suit your needs precisely.

Other Information

• Pay Mode Terms: T/T (Bank Transfer)

 Our specialization lies in offering a commendable range of Dwyer Make Magnehelic Gauge Series 2000. Manufactured with utmost care and precision at our vendors end using superb quality components, our offered product is highly acclaimed in the market. After being manufactured, the offered product is properly tested on defined parameters. Clients can avail the entire range from us in various Technical Specifications at industry leading prices.

Features:

• Compact size
• Accuracy
• Easy installation

Other Information

• Pay Mode Terms: T/T (Bank Transfer)

 The series A1 digital differential pressure gage is a patent pending microprocessor based digital pressure gauge for positive, negative, and differential measurement designed to be a direct replacement for mechanical gauges. The Series A1 differential pressure gauges utilize an extremely stable piezoresistive sensing technology to give a standard full scale accuracy of 1%. For applications requiring better accuracy, the A1 is also available with 0.5% accuracy. The A1 pressure gauge also has an optional 4-20 mA output for applications requiring an output signal. The A1 features a bright ½" LED display, which gives the gauge improved readability and precision. The A1 digital differential pressure gauges also feature 5 user selectable engineering units including in. w.c., mm w.c., cm w.c., kPa, and Pa. The Series A1 offers an improved look, and performance compare to mechanical gauges for a similar price

Maximum Pressure:
4" w.c. and less = 2 PSI; 5" w.c. and above = 10 PSI
Media compatibility:
Air and compatible non combustible, non corrosive gasses
Accuracy*:
Axxx0-xx - 1.00%; Axxx1-xx - 0.50%; Axxx2-xx – 0.25%
Temperature Ranges: Compensated and Operating:
-10° to 140°F (-23° to 60°C)
Thermal Effect*:
+/- 0.012% FS/°F
Output Signal:
4-20 mA (option)
Loop Resistance:
750 Ω Max (for internally sourced power); 1800 Ω Max
(for externally sourced power of 36 VDC)
Power Supply:
Universal 24-240 VAC or VDC
Housing Material:
Glass Filled Nylon
Enclosure Rating:
Designed to meet NEMA 4X face; with optional
cover the entire product is weatherproof

Other Information

• Pay Mode Terms: T/T (Bank Transfer)

 The Series S1000 Front Mount Differential Pressure Gauge makes panel mounting quick and easy. The S1000 is a diaphragm operated gauge for measuring positive, negative, or differential pressure. The S1000 was designed to allow quick installation saving time and money. This includes easy front mounting with 4 screws without any additional hardware required, and quick tubing connections with molded-in pressure fittings. The Series S1000 Front Mount Differential Pressure Gauge has a span adjustment on the back of the gauge for calibration adjustments. In addition to the time savings offered by the Series S1000 Differential Pressure Gauge, the gauge is based on the same rugged design as the S2000, which allows for years of trouble free operation.

Pressure Limits:

20” Hg to 15 PSI (-0.677 bar to 1.034 bar)
Media Compatibility:
Air and compatible gasses

Accuracy:

Duplicate high and low recessed, push on connections for 3/16” tubing – one pair side and one pair back
Weight:
1 lb 2 oz (510 g)
Accessories:
2 connection plugs, 4 mounting screws, 4 screw caps, 2 static pressure connectors, and 3 feet of vinyl tubing
Agency Approvals:
RoHS, CE

Other Information

• Pay Mode Terms: T/T (Bank Transfer)

 monitor the pressure of air and compatible gases just as its famous analog predecessor the Magnehelic Differential Pressure Gage. All models are factory calibrated to specific ranges. The 4-digit LCD can display readings in common English and metric units so conversions are not necessary. The simplified four button operation reduces set up time and simplifies calibration with its digital push button zero and span.

Other Information

• Pay Mode Terms: T/T (Bank Transfer)

 monitor the pressure of air and compatible gases just as its famous analog predecessor the Magnehelic® Differential Pressure Gage. All models are factory calibrated to specific ranges. The 4-digit LCD can display readings in common English and metric units so conversions are not necessary. The simplified four button operation reduces set up time and simplifies calibration with its digital push button zero and span.

 We are one of the topmost manufacturer, exporter and supplier of a superior quality range of MS Box Flesh type Magnehelic Gauge. These instruments are designed and made utilizing the finest grade raw material by following high definition engineering principles. Furthermore, these are widely appreciated for some of the salient features like accurate dimension, durability, superior performance and corrosion resistance. We provide these to our clients in both, standard and customized options according to the specific demands of customers.

Other Information

• Pay Mode Terms: T/T (Bank Transfer)

 We are one step ahead of our competitors in supplying a wide range of Low Cost Sensocon Differential Pressure Gauge. These premium quality products are manufactured using high-grade raw material, which is obtained from the most authentic and leading vendor in the market. Skilled professionals are hired to provide proper guidelines to our staff to manufacture high quality range of these products. The product is used for various purposes in different industries like filter Status, Duct Static, Pressure Clean Room Pressure, Building Pressure,Fan and Blower Pressure.

Specifications:

• Accuracy 2%
• Mounts in Industry
• Type : Arrow indicator
• Die Cast Aluminum Housing
• Standard Holes
• Temperature : 20 to 140 F

Other Information

• Pay Mode Terms: T/T (Bank Transfer)

 Low Pressure Differential Gauge for pharma companies.

Other Information

• Pay Mode Terms: T/T (Bank Transfer)

 Features:

• 4 Pressure Measurement from 6mmwc upto 100mmwc
• 4 Dial Sizes 4-1/2” (115mm)
• 4 Aluminium Case
• 4 Accuracy +-2% FS.
• Applications
• Filter Status
• Duct Static Pressure
• Clean Room Pressure
• Building Pressure
• Fan and Blower Pressure
• Paint Booths
• Dust Collectors
• Glove Box Pressure
• Bubbler Systems
• Cabinet Purging

Other Information

• Pay Mode Terms: T/T (Bank Transfer)

 Features:

• Service: Air and non-combustible,compatible gases
• Wetted Materials: Consult factory
• Accuracy: ±2% of FS (3000-0 ±3% of FS). (3000-00 ±4% of FS)
• Pressure Limit: -20 Hg. to 25 psig (-0.677 bar to 1.72 bar). MP option
• 35 psig (2.41 bar), HP option; 80 psig (5.52 bar)
• Temperature Limits: 20 to 120°F (-6.67 to 48.9°C)
• Process Connections: 1/8 female NPT (duplicated side and back)
• Size: 4 (101.6 mm) dial face, 5 (127 mm) OD x 3-1/8 (79.38 mm)
• Weight: 1.8 Ib (816 g)

Using solid state technology, the Series 3000MR and 3000MRS Photohelic switch/gages combine the functions of a precise, highly repeatable differential pressure switch with a large easy-to-read analog pressure gage employing the durable, time-proven Magnehelic gage design. Switch setting is easy to adjust with large external knobs on the gage face. Gage reading is unaffected by switch operation — will indicate accurately even if power is interrupted. Solid state design now results in greatly reduced size and weight.
